How Are High-Quality Industrial Nuts Manufactured? Complete Standard Production Process
Release time：2026.08.04
Source：Dexin Metal
Views：20
Professional Industrial Knowledge | The Manufacturing Process of Precision Standard & Custom Nuts
Nuts are essential core components for industrial assembly. Their precision, structural toughness and dimensional stability directly determine the safety and service life of mechanical connection systems. With the upgrading of automotive, new energy, precision electronics and engineering machinery industries, ordinary low-precision nuts can no longer meet high-end assembly demands. Qualified industrial nuts rely on standardized, refined manufacturing processes to deliver stable batch quality, precise tolerance and reliable mechanical performance.
Many engineering and procurement teams only focus on finished nut parameters, while ignoring the rigorous production process behind qualified products. This article systematically sorts out the complete manufacturing flow of high-quality industrial nuts, providing professional reference for product design and industrial sourcing.
1. Raw Material Selection & Inspection
Raw material quality is the foundation of high-performance nuts. According to different application scenarios and load requirements, we adopt carbon steel, stainless steel and alloy steel as core production materials, matching conventional, medium-strength and high-strength corrosion-resistant working environments respectively. All incoming wire rods undergo strict factory testing, including chemical composition analysis, hardness detection, tensile strength verification and surface defect screening. Unqualified raw materials are completely eliminated to ensure stable follow-up processing quality.
2. Wire Straightening & Fixed-Length Cutting
Coiled steel wire rods are prone to bending and internal stress after long-term storage. Professional straightening equipment is used to eliminate material deformation and ensure wire flatness. After straightening, precise numerical control cutting divides the wire into fixed-length blanks with consistent weight and section flatness. Uniform raw material blanks guarantee unified specifications and stable performance for batch-produced nuts.
3. 6-Die Multi-Station Cold Forming (Core Process)
Cold forming is the key process that determines nut precision and toughness. High-quality industrial and custom nuts universally adopt 6-die multi-station progressive cold forming technology, which outperforms traditional 2-die and 3-die forming in accuracy, stability and yield.
This segmented progressive process completes upsetting, pre-shaping, hole punching, hexagon trimming and fine finishing in one continuous cycle. It enables uniform metal flow without damaging the original metal fiber structure, effectively improving nut density and toughness. The process avoids common defects such as eccentric inner holes, irregular edges and uneven wall thickness, achieving ultra-high dimensional precision and excellent batch consistency.
4. Precision Thread Tapping
After cold forming, nut blanks obtain complete outer shapes and inner holes. The tapping process processes standard inner threads strictly in accordance with international tooth profiles and pitches. Controlled processing speed and feed depth ensure smooth, burr-free and complete threads. Precise thread matching effectively prevents assembly jamming, slipping and loosening, securing long-term connection stability.
5. Professional Heat Treatment (High-Strength Nuts)
For heavy-load nuts used in automobiles, engineering machinery and outdoor equipment, standardized quenching and tempering treatment is essential. This process optimizes internal metal structure, greatly improving nut hardness, tensile strength and fatigue resistance. Treated high-strength nuts resist deformation and fracture under long-term vibration and heavy load, adapting to harsh industrial environments.
6. Surface Anti-Corrosion Treatment
According to customer needs and application scenarios, nuts are processed with zinc plating, nickel plating, blackening and other surface treatments. A dense protective layer is formed on the nut surface to isolate moisture and corrosive substances, enhancing rust and corrosion resistance. Meanwhile, surface finishing removes burrs and improves product appearance, meeting dual demands of performance and aesthetics.
7. Finished Product Inspection & Sorting
All finished nuts undergo comprehensive pre-delivery inspection, including dimensional tolerance detection, thread precision verification, surface defect screening and mechanical performance sampling. Defective products are strictly screened out, and batch sampling tests for salt spray resistance and structural stability are conducted to ensure all products meet industry standards and customized requirements.
Core Advantages of 6-Die Cold Forming Technology
6-die multi-station cold forming has become the mainstream process for high-end nut manufacturing. With segmented precise processing, uniform metal stress and complete fiber structure, it features high precision, low defect rate and strong production flexibility. It supports mass production of standard nuts and customized processing of various special-shaped non-standard nuts, fully adapting to diverse industrial needs.

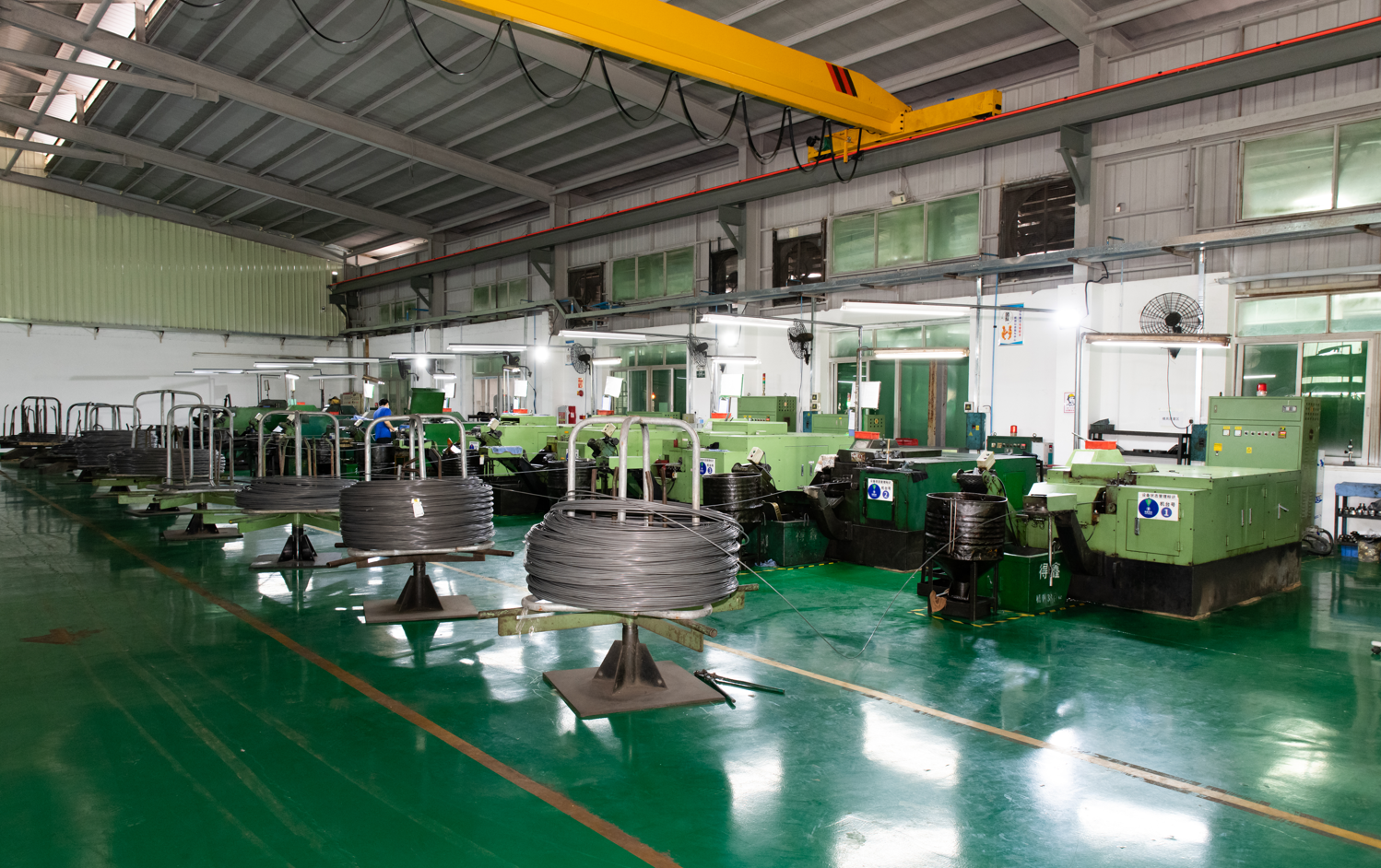

Equipped with over 10 sets of professional 6-die nut cold forming machines, Dexin Metal adheres to standardized production and strict quality control. We provide fast mold opening, rapid sampling and stable batch production for all standard and non-standard nuts, delivering high-precision, reliable fastener solutions for global industrial customers.
